C-Frame Two Point Deep Drawing Press
Request a Quote

DG2 Deep Drawing Presses

C-Frame Two Point Deep Drawing Press

Mechanical gap frame press for forming battery shells and other deep drawn parts
  • Capacity 60T to 160T
  • Stroke length 140mm to 240mm

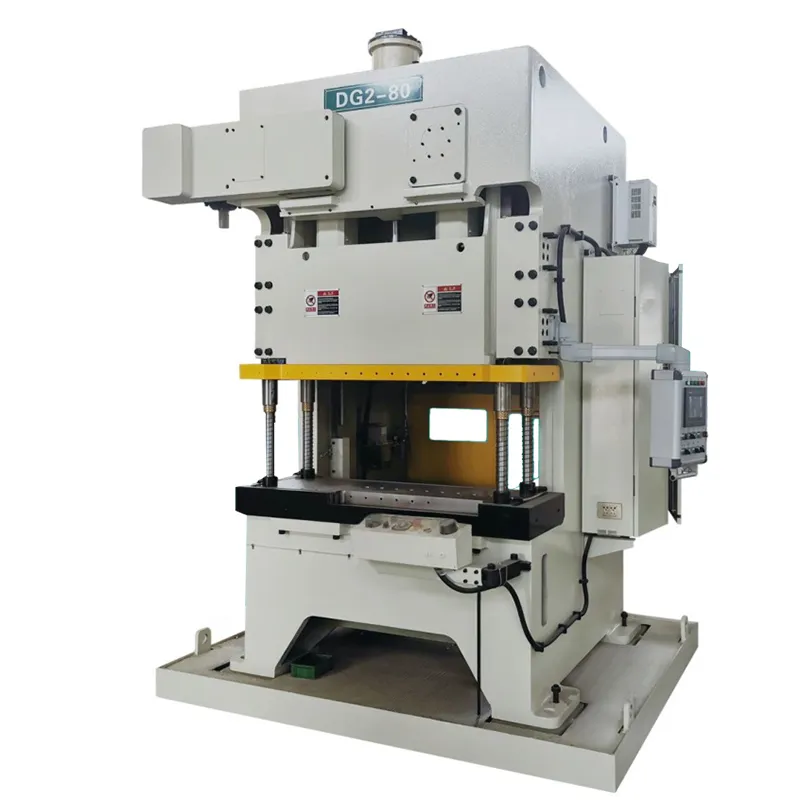

The DG2 c-frame two point deep drawing press is specially designed for high-precision forming of battery shells and other deep drawn parts. This mechanical gap frame press exceeds Japan’s JIS Grade-1 precision standards and is ideal for deep drawing operations requiring speed, stability, and accuracy.

With a capacity from 60T to 160T and stroke lengths ranging from 140mm to 240mm, the deep drawing press supports efficient, high-speed production. Its one-piece welded structure is stress-relieved through tempering, ensuring exceptional rigidity. Customers are welcome to witness the tempering process at our facility.

All gears are processed to the same standard as leading Japanese brands and ground for high transmission efficiency and low noise. The connecting rods, bearings, and guideways use circulating thin oil lubrication to support long-term high-speed operation. Equipped with a high-torque clutch and brake system from Italian brand Yuyi, the press ensures reliable safety performance.

Applications

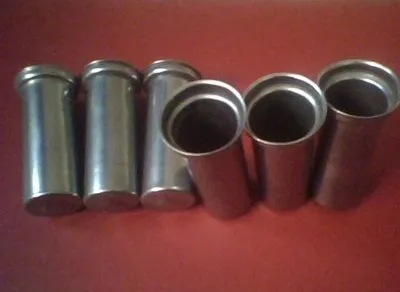

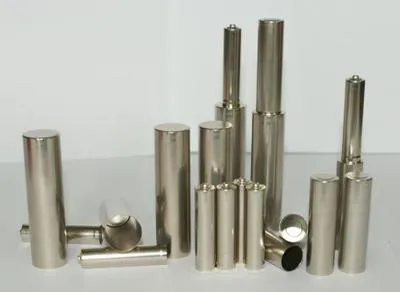

  • Battery shells: 7#, 5#, 18650, 21700, 26700, 32650
  • Deep drawn components in automotive cooling and related fields
Applications
Applications
Specifications
Model Unit DG2-60E DG2-80E DG2-110E DG2-160E
Capacity T 60 80 110 160
Rated tonnage point mm 3.0 3.5 5 6
Stroke length mm 140 180 190 240
Max. die height mm 260 320 320 380
Slide strokes per minute S.P.M 50-100 60-80 30-50 25-45
Slide area mm 1460×480×70 1460×480×70 1760×500×70 2040×600×70
Bolster area mm 1500×480×130 1500×480×130 1800×600×130 2100×760×150
Max. upper-die weight kg 300 300 700 800
Download

Our product brochure

Download
