DH1 Stamping Presses

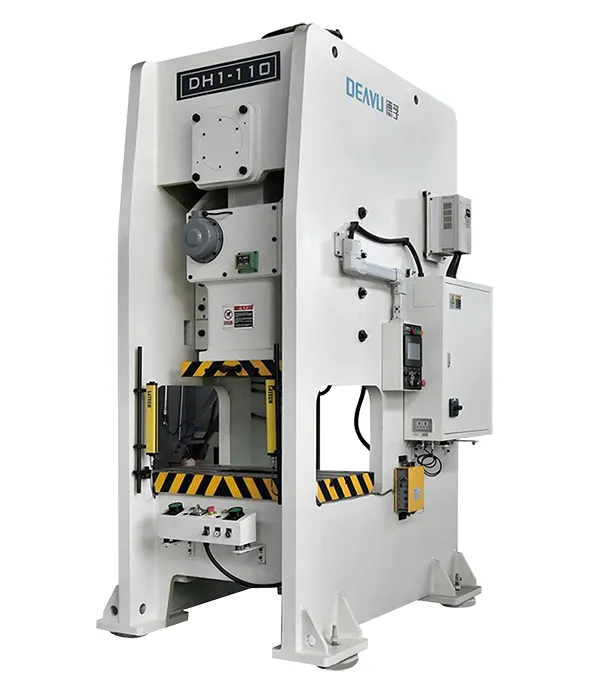

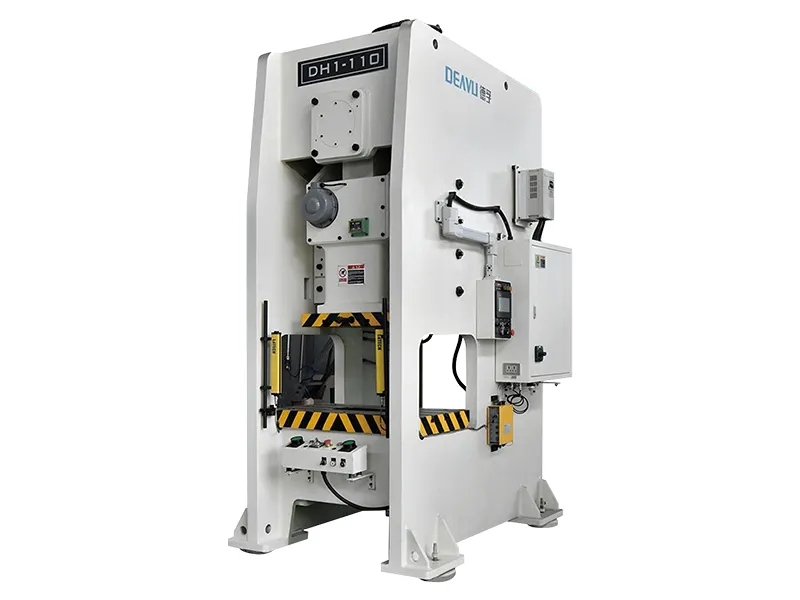

Single Point Straight Side Press

D-frame mechanical press for metal stamping, punching, bending, cutting and blanking
  • Capacity 110T to 315T
  • Strokes per minute 20SPM to 90SPM
  • Stroke length 80mm to 250mm
  • Slide area 650×470mm to 1000×700mm

The DH1 single point straight side press is a high-precision mechanical press built with a D-frame structure. This press combines precision, production efficiency, and structural stability, making it well-suited for automotive, electronics, appliance, aerospace, and hardware manufacturing industries.

With a capacity from 110T to 315T and stroke speeds between 20 and 90 SPM, the single point straight side press supports demanding production environments. Built to Japan’s JIS grade-1 precision standards, it ensures consistent, accurate performance over long-term operations.

Applications
  • Tools: wrench grooves, pliers, screwdriver heads, hammer heads
  • Kitchenware: pot lids, knives, baking trays
  • Home appliances: washing machine shells, refrigerator door panels, microwave oven panels, air conditioner casings
  • Hardware: hinges, locks, screws
  • Electronics: smartphone frames, metal casings, circuit board brackets, LCD parts
  • Automotive components and more
Key Features
  • High-rigidity D-frame structure for minimal deformation and excellent stability
  • High-torque dry/wet clutch and brake system for smooth, reliable operation
  • Precision six-surface guideways for stable, accurate stamping
  • Hydraulic overload protection for safe and efficient use
  • Quick die change system to increase productivity
  • Single crankshaft transmission for balanced force and smooth motion
  • Intelligent safety and control management system
Specifications
Model Unit DH1-110T DH1-160T DH1-200T DH1-260T DH1-315T
Type V H V H V H V H V H
Capacity T 110 160 200 260 315
Rated tonnage point mm 6 3 6 3 6 3 7 3.5 7 3.5
Strokes per minute S.P.M 30-60 60-90 20-50 40-70 20-50 35-70 20-40 40-50 20-35 30-50
Stroke length mm 180 80 200 90 200 100 250 150 250 150
Max. shut height mm 360 410 460 510 460 510 500 550 550 600
Die height adjustment mm 80 100 110 120 120
Slide area mm 650×470×80 700×550×90 850×630×90 950×700×100 1000×750×110
Slide plate thickness
Bolster area mm 1090×600×110 1190×800×140 1400×820×160 1500×840×180 1600×900×200
Bolster plate thickness
Air pressure required kg/cm² 6 6 6 6 6
Main motor kW.p 11×4 15×4 15×4 18.5×4 30×4
Slide adjustment mechanism Electric
Precision mm JIS 6402 (Japan) Grade-1
Die cushion 1 pad, 1 cylinder
Die cushion capacity ton 6.3 10 14 14 14
Die cushion stroke length mm 70 80 100 100 100
Die cushion pad area mm 500×350 650×420 710×480 810×480 810×480

  • Variable speed drive
  • Hydraulic overload protector
  • Electrical slide adjustment
  • Electric die height indicator
  • Slide and die counterbalance system
  • Misfeed detector
  • Power socket
  • Rotary cam switch
  • Crank angle indicator
  • Electrical stroke counter
  • Air source connector
  • Overrun safety device
  • Maintenance tool box
  • Operating manual

  • Photoelectric safety device
  • Automatic grease lubrication system
  • Pneumatic die cushion
  • Preset counter
  • Foot switch
  • Quick die change (die lifter, die clamp, die arm)
  • Slide knockout
  • Anti-vibration mounts
  • Feeder (pneumatic, mechanical and NC)
  • Uncoiler
  • Leveler
  • Manipulator
  • Die area light
  • Touch screen (preset and total counter)
  • PACLDO control system
  • Human-machine control system
  • Wet clutch

Designs are subject to change without prior notice and can be customized according to your requirements.

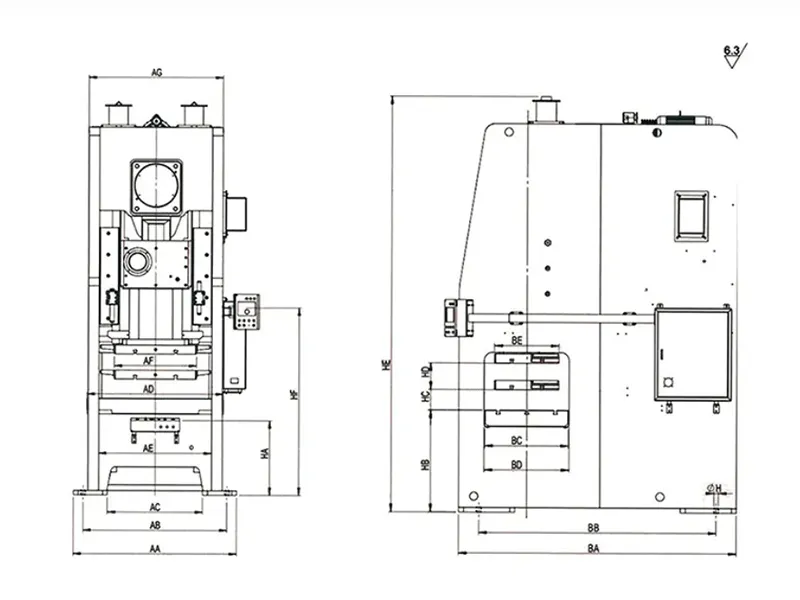

Outline Dimensions
Model DH1-80 DH1-110 DH1-160 DH1-200 DH1-260 DH1-315
Type V H V H V H V H V H V H
AA 1210 1320 1520 1710 1730 1800
AB 1040 1180 1340 1430 1480 1640
AC 690 720 870 990 990 1062
AD 930 1090 1190 1400 1500 1600
AE 780 920 1000 1160 1160 1260
AF 560 650 700 850 950 1000
AG 880 1060 1160 1340 1360 1360
BA 1770 1850 2350 2600 2585 2775
BB 1540 1640 2000 2180 2215 2305
BC 550 600 880 820 820 900
BD 560 610 890 830 830 910
BE 420 470 550 630 700 750
HA 750 760 797 880 930 805
HB 830 850 920 1040 1080 1000
HC 340 380 360 410 460 510 460 510 500 550 550 600
HD 150 70 180 80 200 90 200 100 250 150 250 150
HE 2952 3205 3655 4065 4107 4316
HF 1750 1747 1895 1910 1795 1763
ØH Ø28 Ø35 Ø35 Ø44 Ø44 Ø44

Bolster & Slide Plate Dimensions

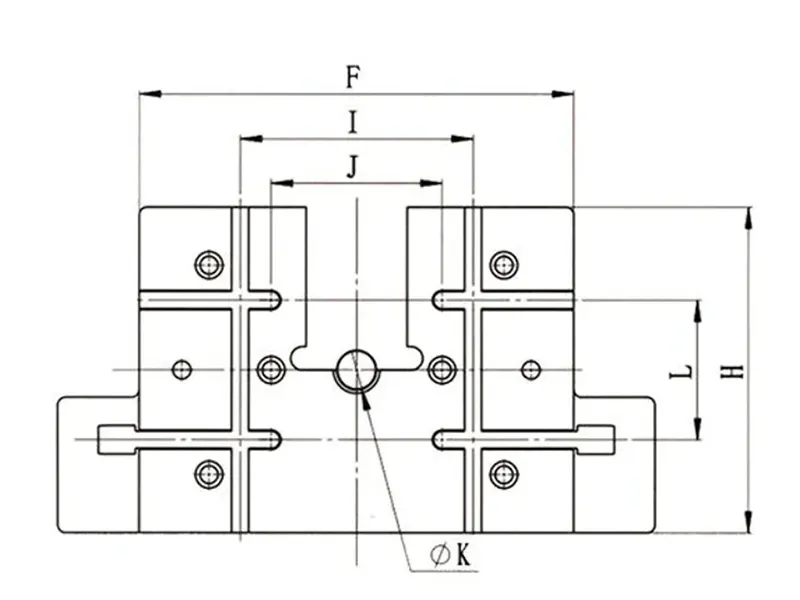

Slide Plate
Bolster & Slide Plate Dimensions

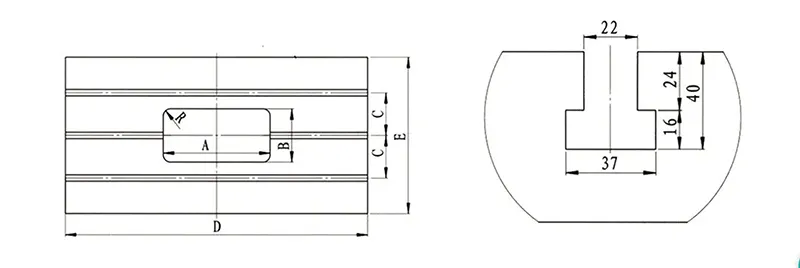

Bolster Plate
Model A B C D E F H I J K L
DH1-80 360 180 150 930 550 560 420 300 220 Ø50 180
DH1-110 400 200 160 1090 600 650 470 300 220 Ø50 220
DH1-160 440 220 220 1190 880 700 550 300 175 Ø65 220
DH1-200 480 240 280 1400 820 850 630 420 200 Ø65 300
DH1-260 520 260 290 1500 820 950 700 420 200 Ø65 300
DH1-315 520 260 290 1600 900 1000 750 420 200 Ø65 300
