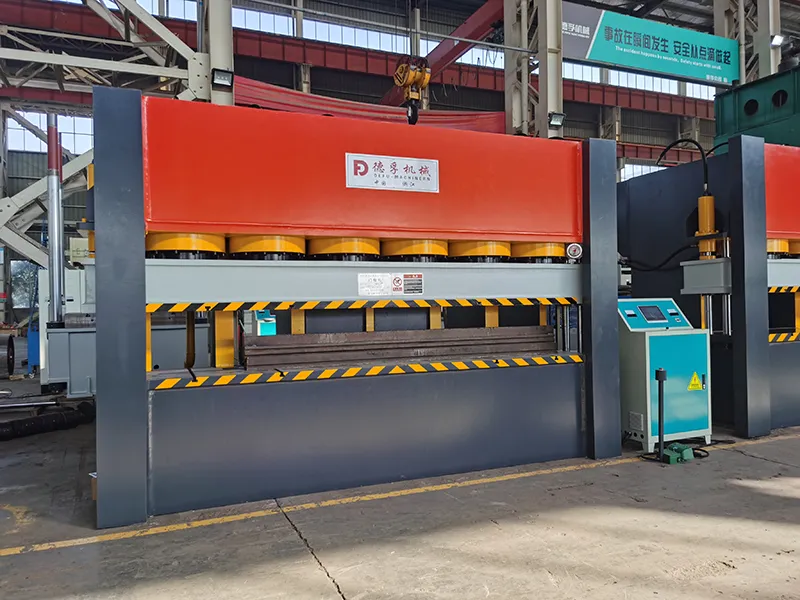

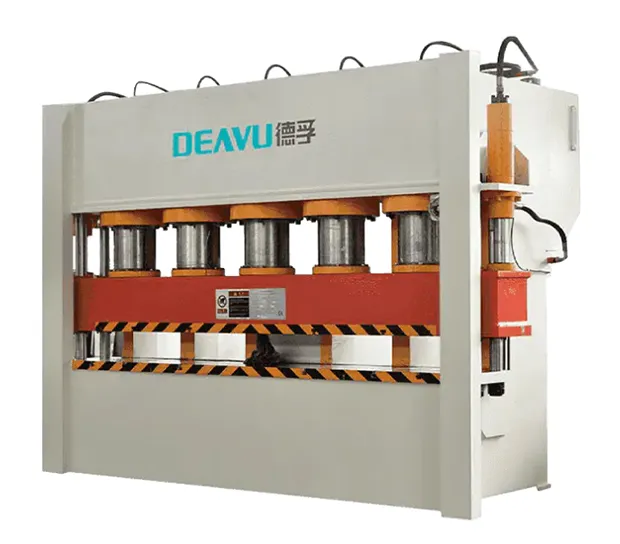

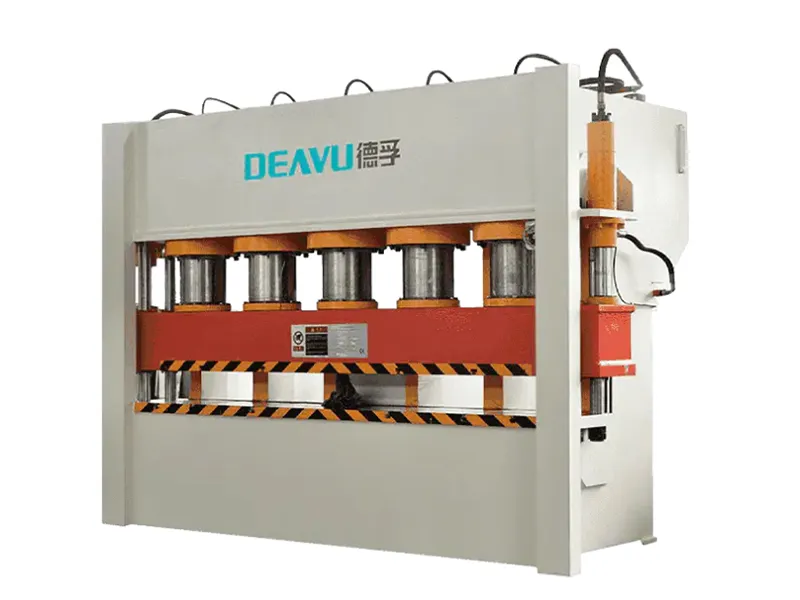

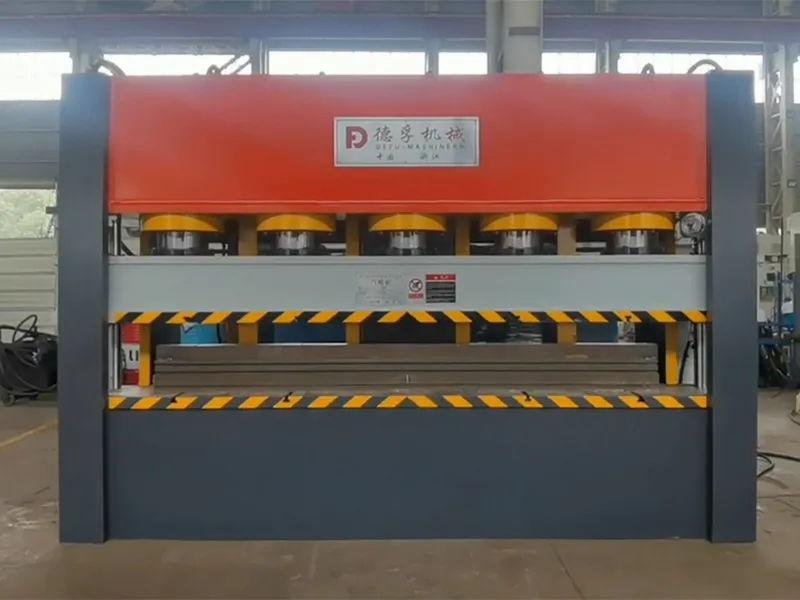

Hydraulic Metal Door Embossing Press

Door frame embossing machine for metal door frame production
  • Nominal capacity 8000kN to 24000kN
  • Return capacity 220kN to 360kN
  • Slide stroke 250mm
  • Table size (L-R×F-B) 2800×400mm to 4000×600mm

The hydraulic metal door embossing press is an open-frame embossing machine designed for the forming and embossing of long strip metal materials. This press is suitable for a wide range of stamping processes including drawing, blanking, bending, and flanging, and is widely used in decorative and industrial metal applications.

With a nominal capacity ranging from 8,000kN to 24,000kN and a slide stroke of 250mm, the press accommodates long sheet materials with table sizes from 2800×400mm to 4000×600mm. Its rigid frame construction ensures precision and strong resistance to off-center loading.

The hydraulic control system uses an integrated cartridge valve system for reliable performance, long service life, and reduced hydraulic shock. The electrical system is controlled by imported PLC for sensitive, reliable operation and easy maintenance.

Applications
  • Metal sheet embossing: For stainless steel, aluminum, and copper sheets used in decorative panels, building facades, elevator doors, and more
  • Decorative components: Ideal for furniture panels, interior decorative boards, and artistic wall panels
  • Anti-slip plates: Used in stair treads, platform panels, and surfaces requiring enhanced grip
  • Automotive parts: Suitable for embossing car interior and exterior parts, such as door trim panels and dashboard covers
Key Features
  • Rigid frame structure provides high precision and strong off-center load capacity
  • Integrated cartridge valve hydraulic control system offers reliable performance with minimal hydraulic shock
  • Compact, imported PLC-controlled electrical system ensures responsive and easy operation with convenient maintenance
Specifications
Model Unit 2400T 2000T 1800T 1600T 1400T 1200T 800T
Nominal capacity kN 24000 20000 18000 16000 14000 12000 8000
Return capacity kN 360 220 220 220 220 220 220
Max. working pressure MPa 25 25 25 25 25 25 25
Slide stroke mm 250 250 250 250 250 250 250
Max. opening height (daylight) mm 400 400 400 400 400 400 400
Slide speed Descent mm/s 180 180 180 180 180 180 180
Pressing mm/s 10-12 10-12 10-12 10-12 10-12 10-12 10-12
Return mm/s 120 120 120 120 120 120 120
Table size Left-Right mm 4000 4000 4000 3600 3200 2800 2800
Front-Back mm 600 600 500 500 500 450 400
Main motor power kW 55 45 37 37 37 22 22

Note: The above models represent our standard configurations. Custom designs and special specifications can be developed according to your specific requirements.
