YDM32 Hydraulic Presses

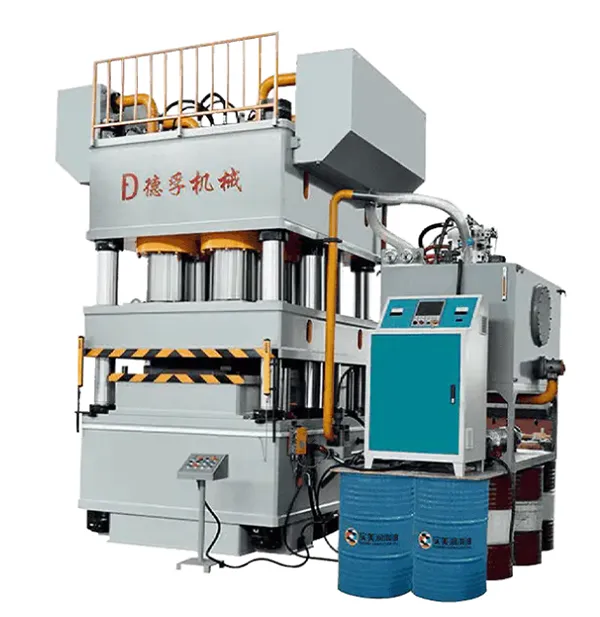

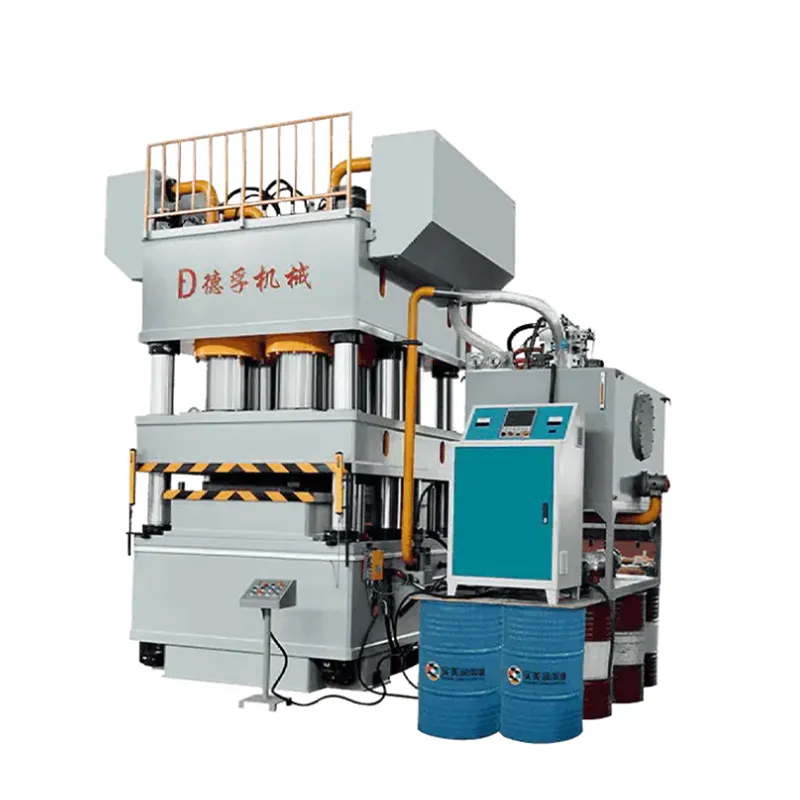

Double-Action 8-Column Hydraulic Embossing Press
- Nominal capacity 20000kN to 36000kN
- Return capacity 380kN to 760kN
- Slide stroke 500mm
- Table size (L-R×F-B) 1480×2500mm to1500×2700mm
The YDM32 double-action 8-column hydraulic embossing press is specially designed for high-efficiency metal embossing applications such as steel doors, leather textures, and stainless steel panels. This press offers stable performance and customizable specifications for table size, stroke, and tonnage, making it adaptable to various production needs.

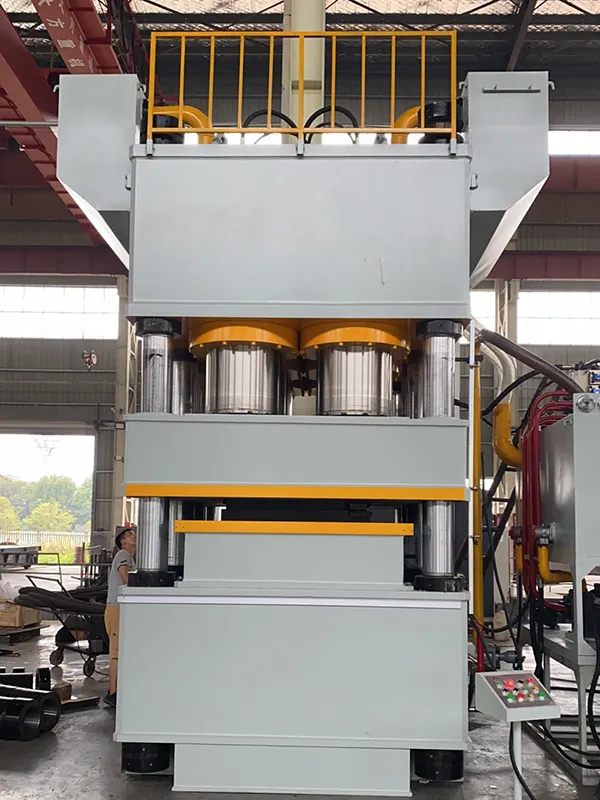

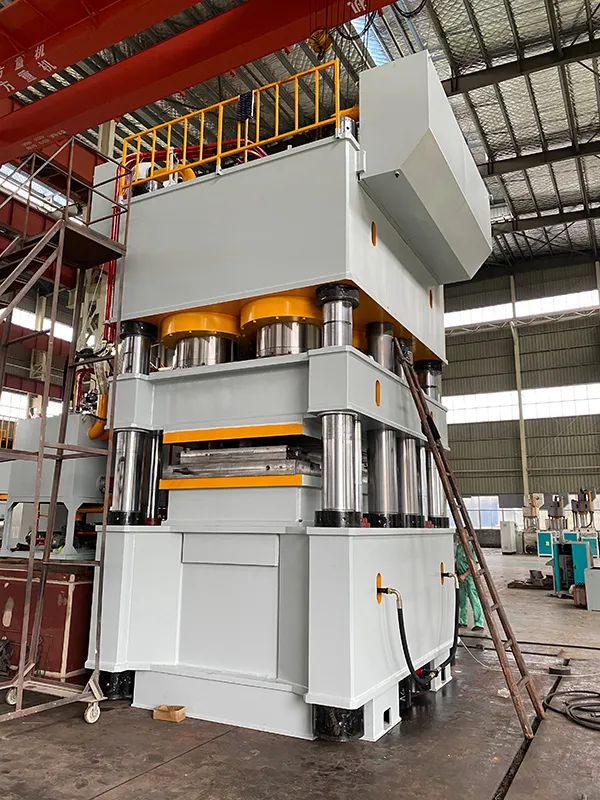

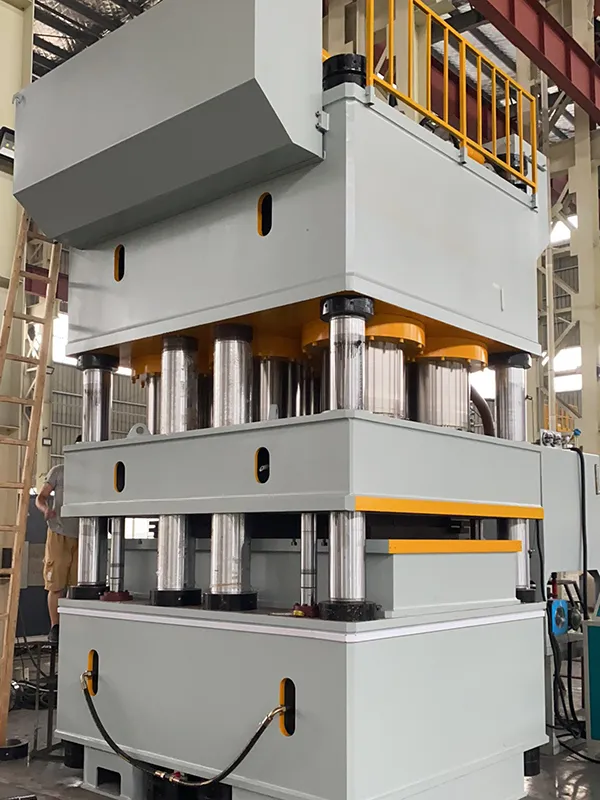

With a nominal capacity ranging from 20,000kN to 36,000kN and a 500mm slide stroke, the embossing press supports powerful, consistent forming. Built with either a three-beam eight-column six-cylinder structure or frame-type structure, it ensures excellent guiding performance and precision retention.
The machine features an independent hydraulic and electrical system with centralized button control, allowing for adjustment, manual, and semi-automatic operation modes. Operators can adjust working pressure, pressing speed, and stroke ranges to meet specific process requirements for both pressure-based and stroke-based forming.
High-quality Schneider electric components are used for safe and reliable control, with clear circuit layouts and a complete electrical schematic provided upon delivery. Optional configurations include light curtain protection, cooling systems, and PLC control. The machine also integrates advanced processing techniques such as shot-blasted oil tanks, high-pressure dust removal, and residue clearance.
