Mechanical Stamping Presses Manufacturer

Stamping Presses

Defu’s stamping press series is widely used across the metal processing industry for its efficiency, precision, and durability. Stamping presses are essential in modern manufacturing for operations such as punching, blanking, cutting, and forming sheet metal.

Defu stamping presses are built to Japan’s JIS B 6402 Grade-1 precision standard, incorporating advanced technologies such as servo press systems and synchronous control of entire press lines, ensuring superior performance and long service life.

Our mechanical press types includes:
  • Single Point Gap Frame Press
  • C-Frame Double Crank Stamping Press
  • Two Point Straight Side Press
  • Four Point Eccentric Geared Straight Side Press
  • Cold Forging Press
  • Deep Drawing Press

These mechanical presses are designed to meet a wide range of production needs—from small-scale workshops to high-volume industrial operations. Defu presses are known for their user-friendly operation, energy efficiency, and low maintenance costs, helping you boost productivity while reducing operational expenses.

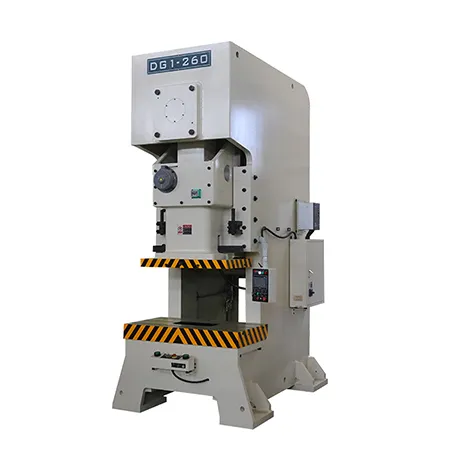

Single Point Gap Frame Press
DG1 Stamping Presses Single Point Gap Frame Press
  • Capacity: 25T to 315T
  • Strokes per minute: 30SPM to 200SPM
  • Stroke length: 30mm to 250mm

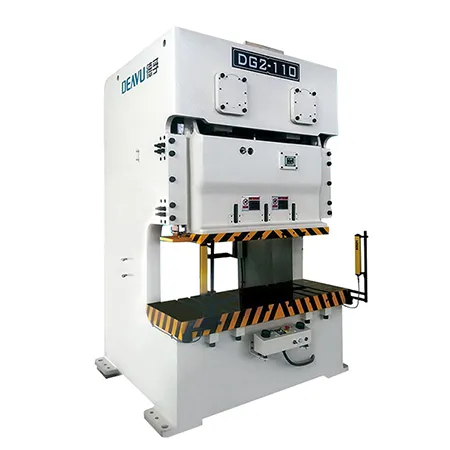

C-Frame Double Crank Stamping Press
DG2 Stamping Presses C-Frame Double Crank Stamping Press
  • Capacity: 110T to 315T
  • Strokes per minute: 20SPM to 100SPM
  • Stroke length: 110mm to 280mm

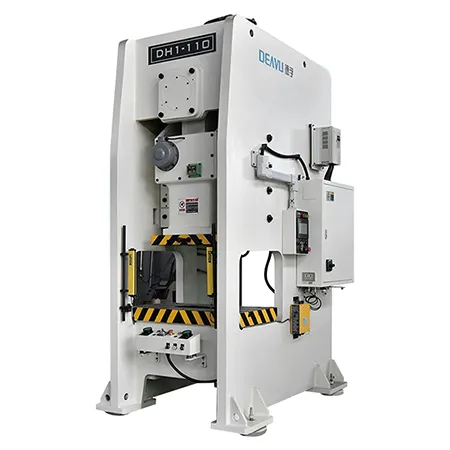

Single Point Straight Side Press
DH1 Stamping Presses Single Point Straight Side Press
  • Capacity: 110T to 315T
  • Strokes per minute: 20SPM to 90SPM
  • Stroke length: 80mm to 250mm

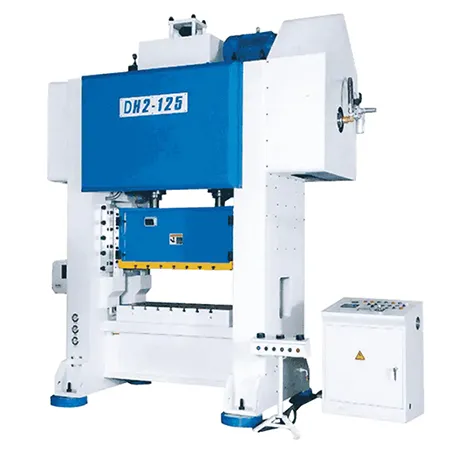

Two Point Straight Side Press
DH2 Stamping Presses Two Point Straight Side Press
  • Capacity: 1250T to 3000T
  • Strokes per minute: 2SPM
  • Stroke length: 30mm

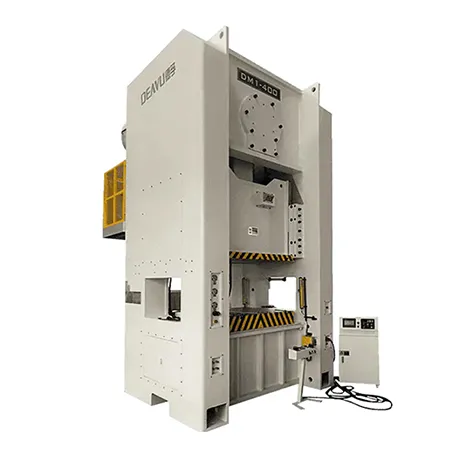

Straight Side Single Crank Press
DM1/DM1L Stamping Presses Straight Side Single Crank Press
  • Capacity: 200T to 600T
  • Strokes per minute: 25SPM to 50SPM
  • Stroke length: 180mm to 250mm

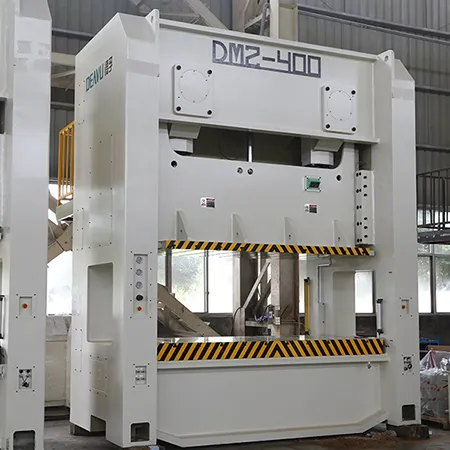

Straight Side Double Crank Press
DM2/DM2L Stamping Presses Straight Side Double Crank Press
  • Capacity: 160T to 600T
  • Strokes per minute: 20SPM to 70SPM
  • Stroke length: 130mm to 300mm

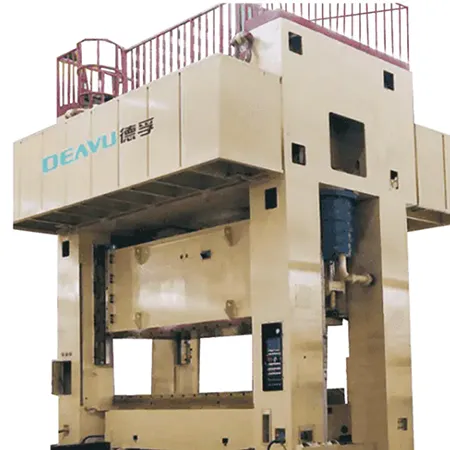

Detachable Frame Straight Side Crank Press
DT2 Stamping Presses Detachable Frame Straight Side Crank Press
  • Capacity: 400T to 1000T
  • Strokes per minute: 15SPM to 35SPM
  • Stroke length: 300mm to 400mm

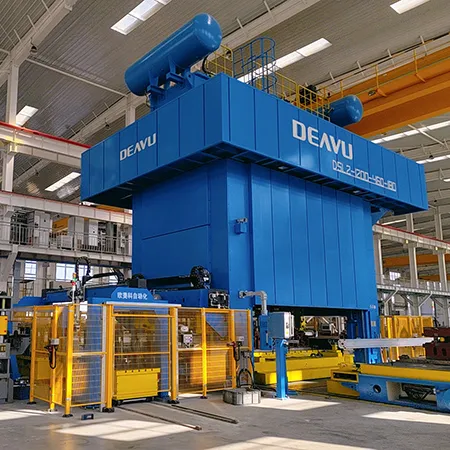

Eccentric Geared Link Motion Mechanical Press
DS2/DSL2 Stamping Presses Eccentric Geared Link Motion Mechanical Press
  • Capacity: 400T to 1250T
  • Strokes per minute: 8SPM to 25SPM
  • Stroke length: 500mm to 800mm

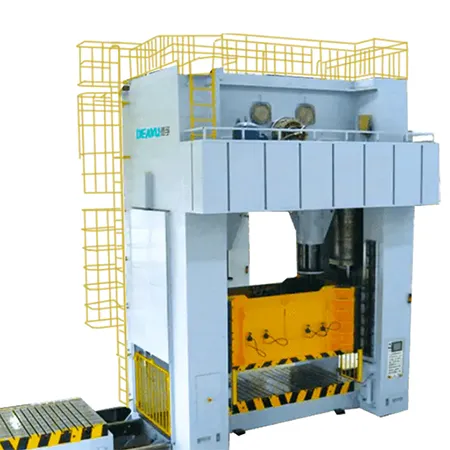

Four-Point Eccentric Geared Straight Side Press
DS4/DSL4 Stamping Presses Four-Point Eccentric Geared Straight Side Press
  • Capacity: 630T to 1600T
  • Strokes per minute: 8SPM to 18SPM
  • Stroke length: 500mm to 800mm

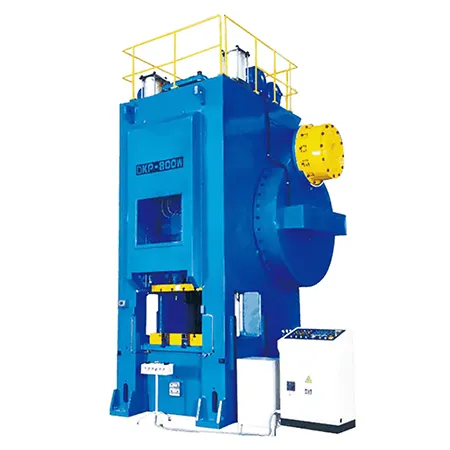

Cold Forging Press
DKP Stamping Presses Cold Forging Press
  • Capacity: 250T to 3000T
  • Strokes per minute: 18SPM to 55SPM
  • Stroke length: 120mm to 250mm

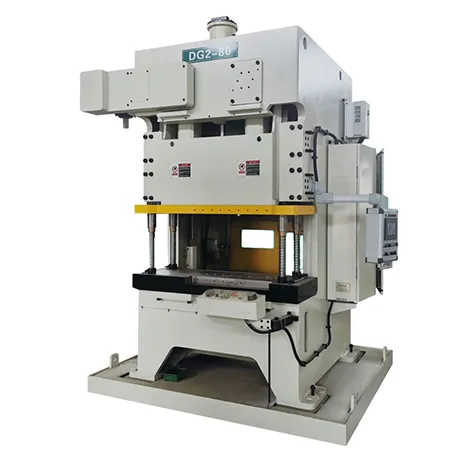

C-Frame Two Point Deep Drawing Press
DG2 Deep Drawing Presses C-Frame Two Point Deep Drawing Press
  • Capacity: 60T to 160T
  • Stroke length: 140mm to 240mm

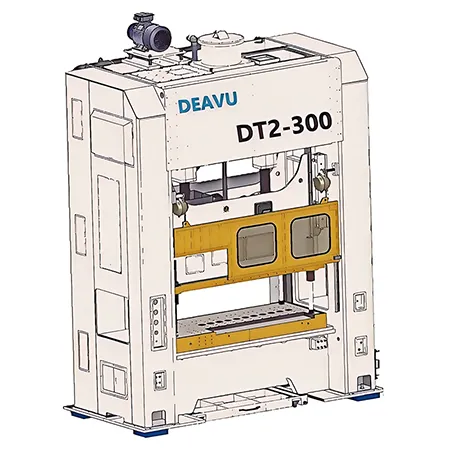

Straight Side Two Point Deep Drawing Press
DT2 Deep Drawing Presses Straight Side Two Point Deep Drawing Press
  • Capacity: 300T to 400T
  • Stroke length: 350mm to 400mm
Selection Guide

Not sure which press fits your application? Use the guide below to select the right mechanical stamping press based on key factors such as:

  • Structure (e.g., gap frame, straight side)
  • Transmission (e.g., crankshaft, eccentric gear, servo)
  • Frame Design (e.g., single-point, two-point, four-point)
Press Type Structure Pressure Points Transmission Lubricant Guide Surface Frame Precision (JIS) Model Tonnage (T)
Universal Stamping Press Gap frame (C frame) Single point Crankshaft Grease Six surfaces Integrated frame Grade-1 DG1 25-315
Two point Crankshaft Grease Six surfaces Integrated frame Grade-1 DG2 110-315
Straight side (D frame) Single point Crankshaft Grease Six surfaces Integrated frame Grade-1 DH1 110-315
Straight side Two point Crankshaft Grease Six/eight surfaces Integrated frame Grade-1 DM2 160-600
Sheet metal stamping press Straight side Single point Crankshaft Thin oil Eight surfaces Integrated frame Grade-1 DT1 150-500
Two point Crankshaft Thin oil Eight surfaces Three-piece detachable frame Grade-1 DT2 400-1000
Automotive stamping press Straight side Two point Crankshaft Thin oil Eight surfaces Integrated frame Grade-1 DT2 400-1000
Single point Eccentric gear Thin oil Integrated/ three-piece detachable frame Grade-1 (perpendicularity: second grade) DS1 250-800
Two point Eccentric gear Thin oil Eight surfaces Three-piece detachable frame Grade-1 (perpendicularity: second grade) DS2 250-1250
Four point Eccentric gear Thin oil Eight surfaces Three-piece detachable frame Grade-1 (perpendicularity: second grade) DS4 630-1000
Eccentric gear + link motion rod Thin oil Eight surfaces Three-piece detachable frame Grade-1 (perpendicularity: second grade) DS4L8 630-1600
Become A Dealer

Defu is a large-scale professional manufacturer specializing in the research, development, production, sales, and service of precision stamping presses and hydraulic presses. Our product range includes gap frame and straight side presses in single-point, two-point, and four-point configurations, as well as 4-column and H-frame hydraulic presses covering dozens of models and hundreds of equipment types.

Industry Experience and Export Reach Industry Experience and Export Reach

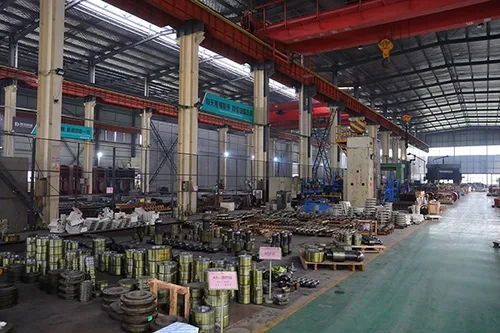

Production Capability Production Capability

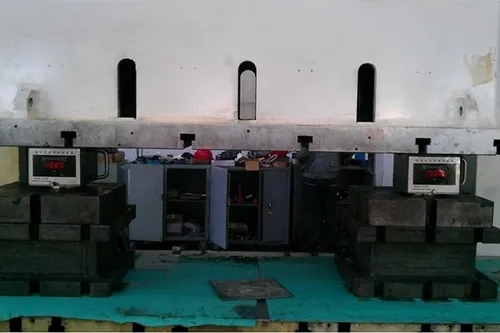

Quality Assurance Quality Assurance
