Two Point Straight Side Press
Request a Quote

DH2 Stamping Presses

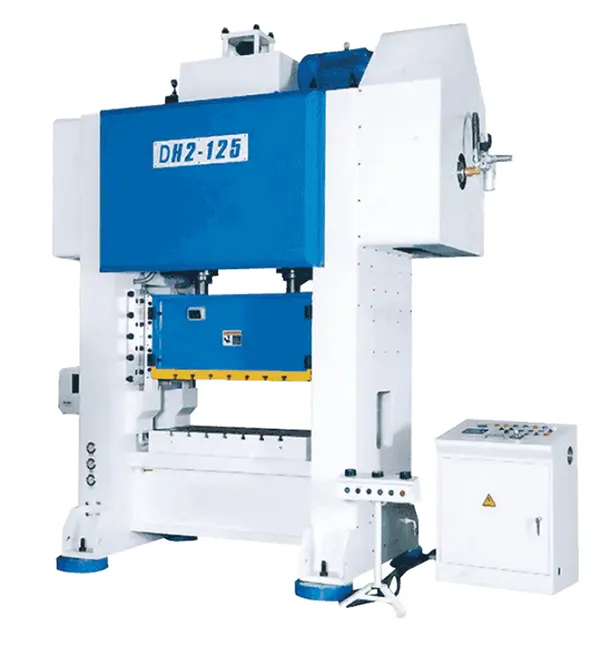

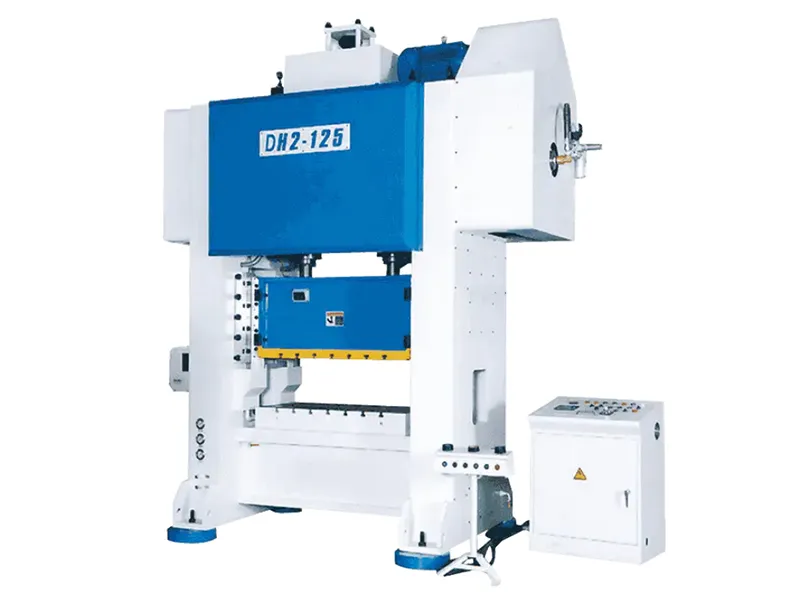

Two Point Straight Side Press

Mechanical press for metal stamping, punching, bending, cutting and blanking
  • Capacity 1250T to 3000T
  • Strokes per minute 2SPM
  • Stroke length 30mm
  • Slide area 1400×600mm to 2300×900mm

The DH2 two point straight side press is engineered for high-speed, high-precision metal stamping, punching, bending, cutting, and blanking. Its closed, double-point design provides even pressure distribution, excellent stability, and outstanding accuracy, making it ideal for continuous production in industries such as automotive, electronics, and home appliances.

With a capacity from 1,250T to 3,000T and a stroke speed of 2 SPM, the two point straight side press handles demanding large-scale stamping applications. Built according to Japan’s JIS special grade standards, this press supports stable, consistent, and accurate operations for your production line.

Applications
  • Tools: wrench grooves, pliers, screwdriver heads, hammer heads
  • Kitchenware: pot lids, knives, baking trays
  • Home appliances: washing machine shells, refrigerator door panels, microwave oven panels, air conditioner casings
  • Hardware: hinges, locks, screws
  • Electronics: smartphone frames, metal casings, circuit board brackets, LCD parts
  • Automotive components, aerospace parts, and more
Key Features
  • Fully enclosed high-rigidity welded structure for minimal deformation
  • Large bolster and slide areas with excellent off-center load capacity
  • Eight-surface long guide rails with high directional accuracy
  • Digital control system using PLC and electronic encoders for easy integration with automated lines
  • Hydraulic overload protection and safe emergency stop functions
  • Inverter-controlled main motor for flexible operation
  • Smooth, balanced stamping with strong structural stability
Specifications
Model Unit DH2-125 DH2-200 DH2-300
Capacity kN 1250 2000 3000
Stroke length mm 30 30 30
Strokes per minute S.P.M 2 2 2
Rated tonnage point mm 150-350 150-350 120-350
Die height mm 400 450 450
Slide adjustment mm 50 50 50
Bolster area mm 1400×700 2000×900 2300×1000
Slide area mm 1400×600 2000×750 2300×900
Slide plate thickness mm 170 190 200
Main motor kW.p 18.5×4 37×4 45×4
Inverter kW 22 45 60
Slide adjustment motor kW.p 0.75×4 1.1×4 1.5×4
Opening in side frames mm 360×410 450×550 500×580
Air pressure kg/cm² 5 5 5
Precision (JIS) JIS special grade JLS special grade JLS special grade
Standard Configurations
  • Hydraulic slide adjustment lock
  • Oil cooler
  • Electronic cam
  • 6-digit electronic type preset counter
  • 6-digit electronic total counter
  • Die height indicator (unit 0.01mm)
  • Air source connector (one channel)
  • Adjustable rubber anti-vibration mounts
  • Automatic lubrication system for raw materials
  • Slide counterbalance system
  • Electrical slide adjustment
  • Three sets of air ejectors
  • Forced lubrication system
  • Misfeed detection socket
  • 24V power socket

Designs are subject to change without prior notice and can be customized according to your requirements.
