Single-Action Hydraulic Embossing Press
Request a Quote

YDM Hydraulic Presses

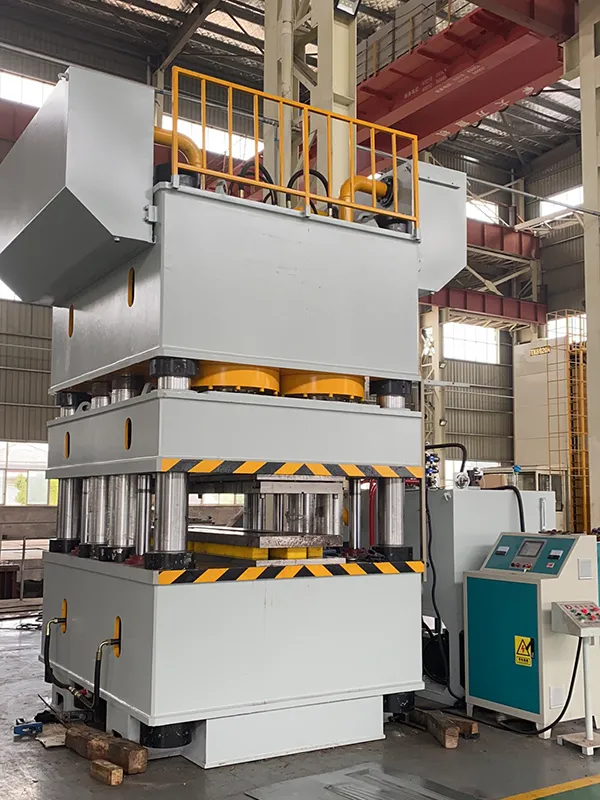

Single-Action 8-Column Hydraulic Embossing Press

Hydraulic press for metal door production
  • Nominal capacity 20000kN to 170000kN
  • Return capacity 360kN to 2500kN
  • Slide stroke 500mm
  • Table size (L-R×F-B) 1480×2500mm to 2400×4200mm

The YDM single-action 8-column hydraulic embossing press is a specialized hydraulic press designed for forming decorative patterns on security doors, steel doors, interior doors, stainless steel doors, and iron doors. It works with a variety of dies to press intricate textures such as metal embossing, leather embossing, and stainless steel embossing.

With a nominal capacity ranging from 20,000kN to 170,000kN, this press supports deep, precise embossing with consistent results. It is built with either a three-beam eight-column six-cylinder structure or a frame structure, offering excellent guidance and stability during operation. The press uses high-quality Schneider electrical components, with a clean layout and complete circuit diagrams included for easy operation and maintenance.

Optional features include light curtain safety protection, cooling systems, and a PLC control unit. The press also incorporates advanced techniques such as shot-blasted oil tanks, high-pressure dust collection, and residue removal.

Applications
  • Metal embossing and stainless steel pattern forming
  • Composite material forming
  • Press forming of water tank panels and door frame panels
Key Features
  • Eight-column structure provides excellent stability and precision during embossing
  • Single-action mechanism offers reliable control for clean, high-quality impressions
  • Adjustable pressure and embossing depth accommodate various door sizes and material thicknesses
  • Intuitive control panel allows operators to fine-tune parameters with ease
  • Integrated safety features prioritize operator protection and ensure safe working conditions
  • Independent hydraulic and electrical systems with centralized button control enable adjustment, manual, and semi-automatic operation modes
  • Adjustable working pressure, pressing speed, and stroke settings support both pressure-based and stroke-based processing
Specifications
Model Unit 17000T 12000T 10000T 6000T 4500T 3600T 3000T 2500T 2000T
Nominal capacity kN 170000 120000 100000 60000 45000 36000 30000 25000 20000
Return capacity kN 2500 2000 800 500 360 360 360 360 360
Max. working pressure MPa 25 25 25 25 25 25 25 25 25
Slide stroke mm 500 500 500 500 500 500 500 500 500
Max. opening height (daylight) mm 600 600 600 600 600 600 600 600 600
Slide speed Descent mm/s 120-150 120-150 120-150 120-150 120-150 120-150 120-150 120-150 120-150
Pressing mm/s 3-6 3-6 8-12 8-12 8-12 8-12 8-12 8-12 8-12
Return mm/s 120 120 120 120 120 120 120 120 120
Table size Left-Right mm 2000 1800 2400 2100 2000 1600 1500 1500 1480
Front-Back mm 3600 3600 4200 4000 3000 2600 2500 2500 2500
Main motor power kW 270 180 165 110 90 74 60 52 44

Note: The above models represent our standard configurations. Custom designs and special specifications can be developed according to your specific requirements.
