H-Frame Hydraulic Deep Drawing Press
Request a Quote

YDF27 Hydraulic Presses

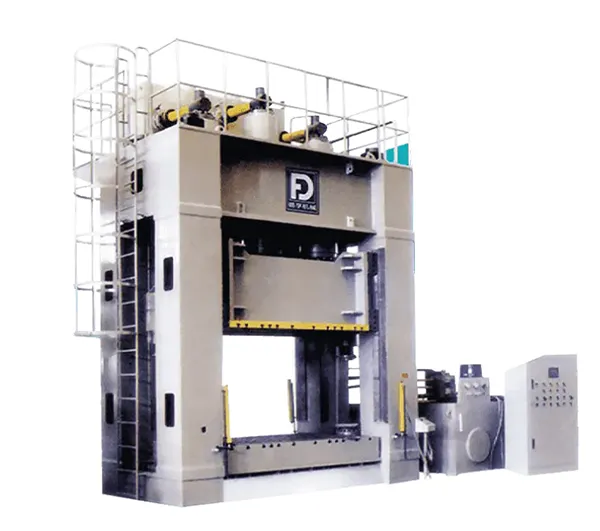

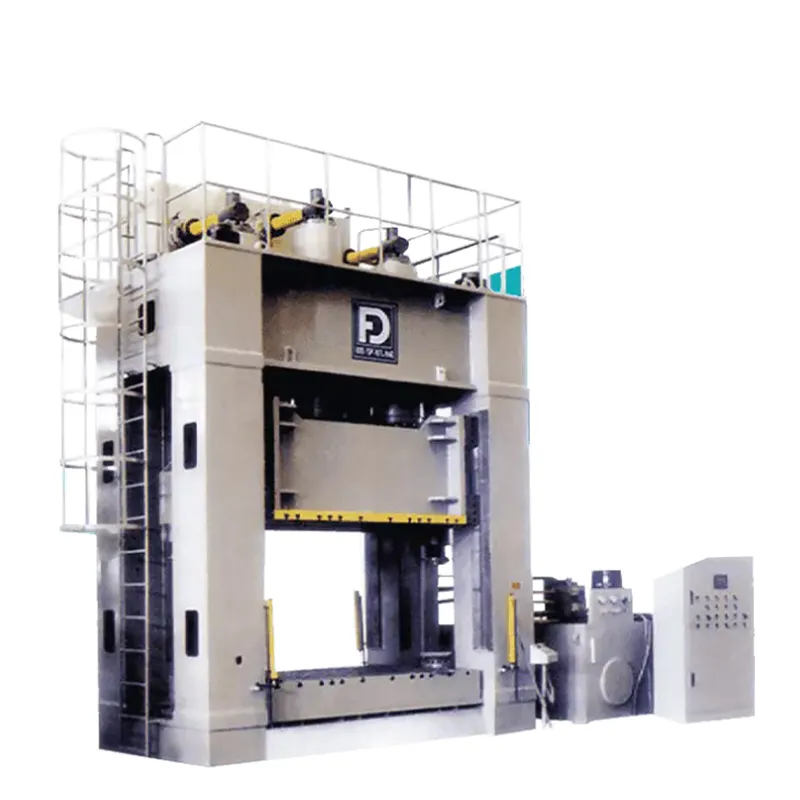

H-Frame Hydraulic Deep Drawing Press

Straight sided hydraulic press with tie rod for sheet metal forming
  • Nominal capacity 3150kN to 20000kN
  • Return capacity 450kN to 1500kN
  • Slide stroke 800mm to 1500mm
  • Table size (L-R×F-B) 2000×1500mm to 4000×2400mm

The YDF27 H-frame single-action hydraulic deep drawing press is a straight-sided hydraulic press with a tie-rod frame, designed for precision forming of thin sheet metal. Also known as a hydraulic press for automotive part stamping, this press is ideal for deep drawing applications across industries including automotive, aerospace, appliances, and construction.

With a nominal capacity ranging from 3,150kN to 20,000kN and slide strokes from 800mm to 1,500mm, the H-frame single-action hydraulic deep drawing press offers high forming force, consistent performance, and flexibility for various part sizes. It can be equipped with a hydraulic cushion for automatic demolding and multi-point ejector systems that apply even force, helping to protect finished parts and speed up production.

Optional configurations include a quick die change system, moving worktable, buffer system, auxiliary demolding system, and photoelectric safety devices to enhance efficiency and functionality.

Applications
  • Thin sheet metal deep drawing: Suitable for car body panels, fenders, covers, and more in the automotive, aerospace, and home appliance industries
  • Complex curved parts: Ideal for forming complex shapes like automotive doors, engine hoods, and aircraft skins
  • High-precision parts: Supports forming of components with tight tolerances, such as electronic enclosures and instrument panels
  • Large sheet metal parts: Perfect for architectural panels, large containers, and oversized components
Specifications
Model Unit YDF27-315 YDF27-500 YDF27-630 YDF27-800 YDF27-1000 YDF27-1500 YDF27-2000
Nominal capacity kN 3150 5000 6300 8000 10000 15000 20000
Return capacity kN 450 570 640 1000 1000 1200 1500
Max. working pressure MPa 25 25 25 25 25 25 25
Slide stroke mm 800 900 1000 1000 1200 1200 1500
Max. opening height (daylight) mm 1250 1500 1600 1600 1800 1800 2000
Cushion capacity kN 1250 2000 2500 3150 4000 5000 6000
capacity stroke mm 300 300 400 400 400 400 400
Slide speed Descent mm/s 150 180 180 180 180 200 200
Pressing mm/s 6-14 7-15 8-16 9-20 9-20 8-16 8-16
Return mm/s 100 120 120 150 150 120 120
Table size Left-Right mm 2000 2000 2500 3000 3000 3600 4000
Front-Back mm 1500 1600 1600 2000 2000 2000 2400
Cushion size Left-Right mm 1500 1500 1800 2250 2250 2700 3200
Front-Back mm 900 900 900 1350 1350 1350 1800
Main motor power kW 22 44 60 90 1 10 135 180

Note: Special specifications can be custom-designed and manufactured according to your requirements.
