YD25 Hydraulic Presses

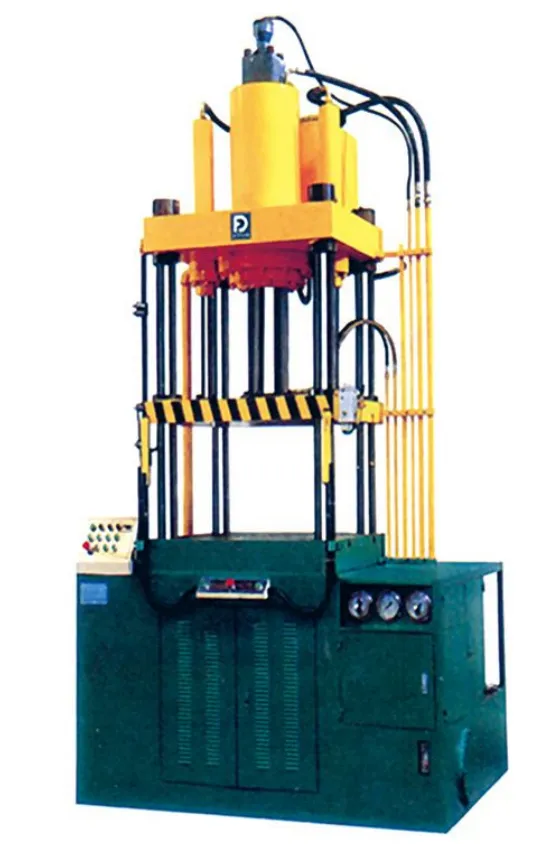

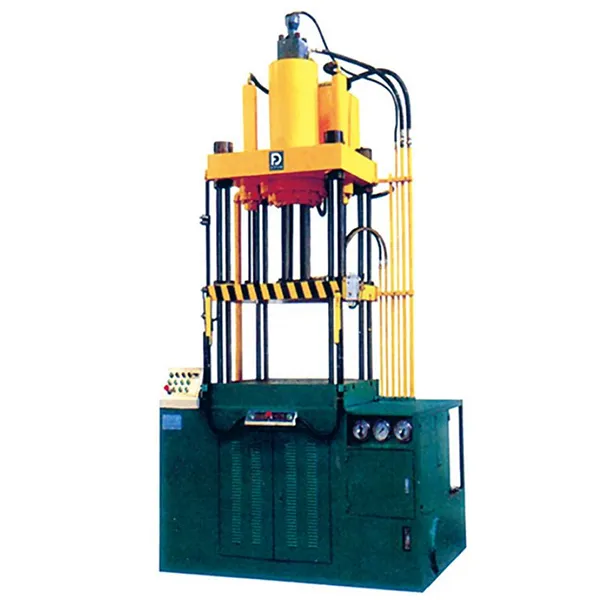

4-Column Hydraulic Deep Drawing Press

4-post hydraulic press with floating guide rail for making aluminum/stainless steel gas cylinder
  • Nominal capacity 280kN to 2000kN
  • Return capacity 40kN to 100kN
  • Max. slide stroke 500mm to 600mm
  • Table size (L-R×F-B) 400×450mm to 900×1000mm

The YD25 4-column hydraulic deep drawing press is a fast-acting deep drawing press with a floating guide rail structure, specifically developed for multi-step forming of aluminum and stainless steel gas cylinders. Its compact, integrated design combines the frame, oil tank, and electrical control system into one unit, ensuring easy installation and space-saving operation.

With a nominal capacity from 280kN to 2,000kN and a maximum slide stroke of 500mm to 600mm, the 4-column hydraulic deep drawing press provides reliable, efficient performance for deep drawing applications that require both speed and precision.

Applications
  • Automotive parts: doors, hoods, suspension arms, crossbeams
  • Appliance parts: refrigerator, washing machine, and air conditioner housings, brackets, and bases
  • Aerospace parts: fuselage skins, ribs, beams, and engine casings
  • Construction components: metal roofing, wall panels, steel connectors, door and window frames
Key Features
  • Low energy consumption, high efficiency, and modern design
  • Equipped with safety protection, automatic counting, and two-stage speed control on the moving beam
  • Rapid no-load descent, slow approach during working phase, and smooth deep drawing operation
  • Main and blank-holder cylinders include upper and lower limit protection with simple, user-friendly stroke adjustments
Specifications
Model Unit YD25-300 YD25-280 YD25-230 YD25-160 YD25-120 YD25-100 YD25-70 YD25-40
Nominal capacity of main cylinder kN 2000 1800 1500 1000 800 650 450 280
Max. working pressure MPa 21 21 21 20 21 21 20 21
Return capacity kN 100 100 128 50 70 65 50 40
Nominal capacity of blank holder cylinder kN 1000 80 800 600 400 350 250 120
Working Pressure of blank holder cylinder MPa 21 600 21 23.5 20 23 21 24
Nominal capacity of return cylinder kN 20 21 20 20 20 15 15 15
Max. stroke of slide mm 600 300 560 500 500 500 500 500
Max. stroke of piston in blank holder cylinder mm 300 20 300 260 250 230 230 230
Max. stroke of return cylinder mm 220 220 265 200 200 180 200 180
Distance from slide to worktable Max. mm 1130 1000 960 850 850 850 800 800
Min. mm 530 400 400 350 350 850 300 300
Slide speed Descent mm/s 190 200 240 380 355 350 280 280
Pressing mm/s 10-32 16-23 14-34 15-31 14-31 18-38 18-28 12-25
Return mm/s 185 260 260 380 350 380 280 280
Blank holder cylinder speed (upward) mm/s 90 100 138 87 125 150 85 85
Return cylinder speed mm/s 125 90 100 65 66 65 66 65
Motor power kW 37 850 30 15 11 11 7.5 7.5
Table size Left-Right mm 900 30 850 700 650 620 450 400
Front-Back mm 1000 990 900 880 750 650 500 450
Machine Dimensions Left-Right mm 2250 2200 2080 1950 1850 1800 1460 1400
Front-Back mm 1710 1610 1500 1500 1300 1250 1000 950
Height mm 3890 3890 3500 3150 3000 3000 3000 2800

Note: Special specifications can be custom-designed and manufactured according to your requirements.
