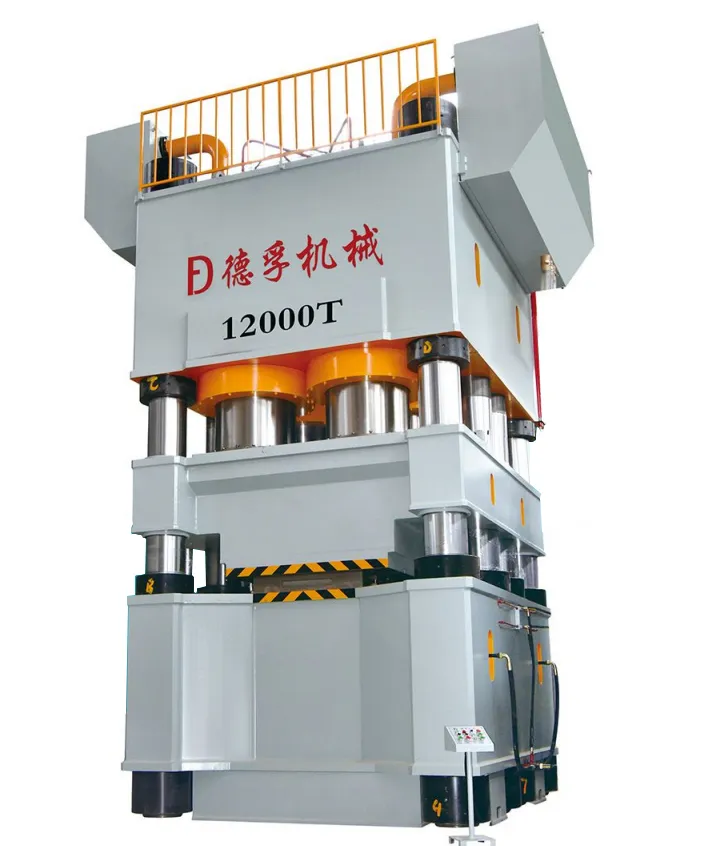

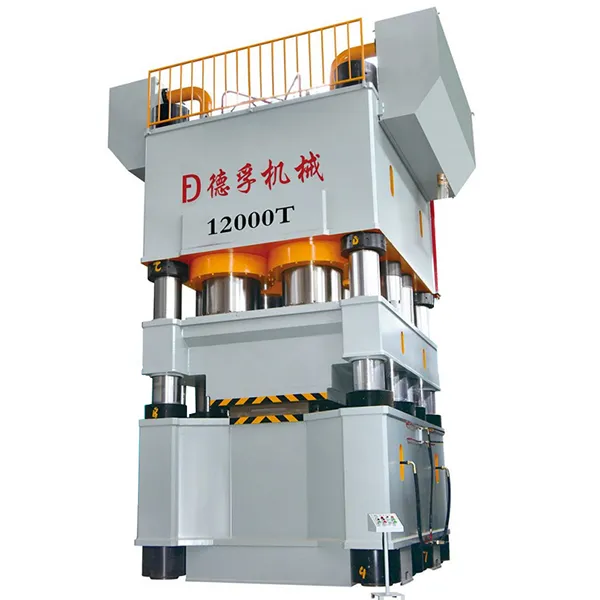

10,000 ton Heavy Duty Hydraulic Press

8-column hydraulic press with customized configuration

The 10,000 ton heavy duty hydraulic press is a fully customizable 8-column press engineered for large-scale, high-pressure industrial forming applications. Unlike standard machines, this heavy-duty press is purpose-built based on your specific technical requirements, workpiece dimensions, production cycle, and process flow making it ideal for complex, high-load manufacturing environments.

10,000 ton Heavy Duty Hydraulic Press
Customizable Structure

The frame can be built using a three-beam, eight-column structure. All beams are fabricated from high-quality steel and undergo stress-relief treatment to eliminate internal welding stress. Cylinders are forged from 35-grade steel, with cold-hardened cast iron plungers (HRC45+). The eight columns are made from 45# steel and hard chrome plated (HRC45+). Guide sleeves use a QT450-10 ductile iron composite structure.

The worktable includes safety ejector columns with automatic extension and retraction, integrated with electrical interlock for added operational safety.

Customizable Hydraulic System

The main oil tank is positioned on the right side of the frame. The system uses cartridge valve control for a compact layout, reliable operation, and leak-free performance under high-pressure, high-flow conditions. Excellent heat dissipation reduces idle energy loss. Control modes include jog and semi-automatic, both fully customizable.

Customizable Core Components
  • Cartridge valves: Shandong Jining
  • Servo motors: Yunsun / Inovance
  • Seals: AIRTIGHT
  • Electrical components: Chint / Omron
  • High-pressure oil pumps: Foster / Haiteke
  • Photoelectric protection system: Lain
Specifications (Customizable)
Nominal capacity 170000kN
Return capacity 3150kN
Slide stroke 500mm
Max. working pressure 30MPa
Max. distance from slide bottom to worktable 600mm
Slide speed Descent 100-120mm/s
Pressing 3-6mm/s
Return 100-120mm/s
Slide area (L-R×F-B) 1800×3600mm
Table area (L-R×F-B) 2400×3600mm
Total power 80kW*3
Oil pump HG22-125-125, 3pcs
Main cylinder ZSG1100, 6pcs
Return cylinder ZSG200, 4pcs
Column diameter Ø520mm, 8pcs
Ejector cylinder 4pcs
Ejector cylinder diameter Ø50mm
