YD34 Hydraulic Presses

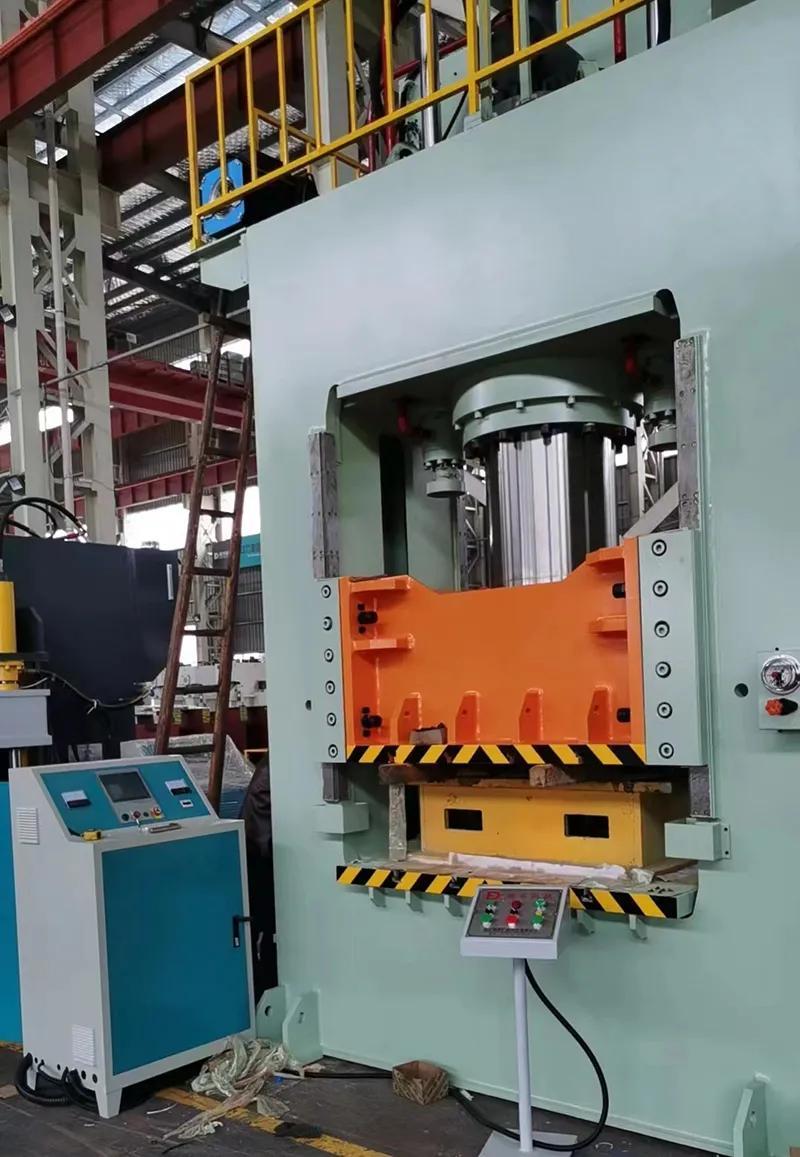

H-Frame Hydraulic Press

Servo hydraulic press for deep drawing, bending, forming, cutting, blanking and flanging operations
  • Nominal capacity 1000kN to 10000kN
  • Return capacity 160kN to 800kN
  • Max. slide stroke 600mm to 1400mm
  • Table size (L-R×F-B) 700×700mm to 1800×1600mm

The YD34 H-frame hydraulic press is a servo-controlled hydraulic press designed for deep drawing, bending, forming, cutting, blanking, and flanging. Built with a fully welded frame structure, this press delivers exceptional strength, rigidity, and long-term stability making it ideal for metal forming and forging applications across a variety of materials and industries.

With a nominal capacity from 1,000kN to 10,000kN and a maximum slide stroke between 600mm and 1,400mm, the H-frame hydraulic press handles a wide range of forming operations with precision. The press uses a four-sided, eight-surface adjustable guide rail with automatic lubrication, ensuring excellent guiding performance and long-lasting accuracy.

Its hydraulic system is equipped with compact cartridge valves that reduce hydraulic resistance and energy loss. The servo system actively regulates working speed and system pressure while offering optional remote-control functionality.

Applications
  • Metal forming: automotive axle parts, general stamping components, small forged blanks
  • Composite materials: SMC molded parts, electrical insulation boxes
  • Rubber parts: seals, pads, tires
  • Powder metallurgy: compacted metal and ceramic components
Key Features
  • Fully welded frame with computer-optimized structure for high strength and simple maintenance
  • Adjustable four-corner, eight-surface guide rail ensures high precision retention
  • Compact cartridge valve hydraulic control system offers reliability, longevity, and reduced hydraulic shock
  • Forming modes include both stroke-based and pressure-based control, selectable via operator panel
  • Ejector cylinder integrated into the lower beam
  • Optional auxiliary units such as quick die change systems available for increased productivity
Specifications
Model Unit YD34-100 YD34-200 YD34-315 YD34-400 YD34-500 YD34-630 YD34-800 YD34-1000
Nominal capacity of main cylinder kN 1000 2000 3150 4000 5000 6300 8000 10000
Max. working pressure MPa 25 25 25 25 25 25 25 25
Return capacity kN 160 240 300 350 380 640 720 800
Ejector capacity kN 500 800 1000 1000 1250 1500 1500 2000
Slide stroke mm 600 700 800 800 900 900 1000 1400
Ejector stroke mm 200 200 200 250 250 250 300 300
Opening height (daylight) mm 900 1100 1250 1250 1500 1500 1600 2000
Table size Left-Right mm 700 900 1200 1300 1400 1600 1600 1800
Front-Back mm 700 900 1200 1300 1400 1400 1400 1600
Slide speed Descent mm/s 150 150 150 150 150 200 200 200
Pressing mm/s 10-16 10-20 10-20 8-15 8-15 8-15 10-16 10-18
Return mm/s 150 160 160 160 150 150 150 150
Main motor power kW 7.5 18.5 22 22 30 44 60 74

Note: Special specifications can be custom-designed and manufactured according to your requirements.
